Our certified pre-owned STRIEBIGS undergo an extensive, multi-point inspection and testing process by our highly experienced factory-trained technicians to ensure that they are free from defects. Any missing or worn parts are replaced, and every machine receives a 6-month warranty on parts and labor.
2006 - Striebig Control Automatic Panel Saw (type 6168) $35,000
Description:
- Automatic saw travel with variable feed rate 10-25 m/min. (33-82 ft./min.)
- Automatic locking panel support rollers
- Digital measuring X and Y axis, with fine adjustment
- Automatic locking of beam at cutting stations
- Push button control for rotating, plunging, and locking of the saw head
- 7-1/2 hp, 220/440V, 3Φ motor with electric brake
- Template bar with four stops for setting typical horizontal cuts
- Selectable sawing cycle (cut and return, or cut and stop)
- Panel end sensor to save time (instead of having to travel to end of saw)
- This machine is long enough to cut two 8’ sheets side by side!
- Includes optional VSA Scoring Unit with easily adjustable, shimless split scoring blades and push button engagement with indicator lights
Specifications:
- Cut capacities*: 17’ 4”L, 5’ 6”H vert, 5’ ½” Hhorz; Depth 3-1/8” (80 mm)
- Machine dimensions: 21’ 9”L, 8’ 1”H, 4’ 11” D
- Weight: 2000 lbs., (approx. 3200 lbs. shipping)
Requirements:
- Electrical: 3-phase, 220V/20 Amp or 440V/10 Amp service; right side of frame
- Dust collection: 1500cfm, 100mm dia. (x2) connection; choice of side
- Compressed Air: 100psi, 3cfm (air dryer strongly recommended); right side of frame

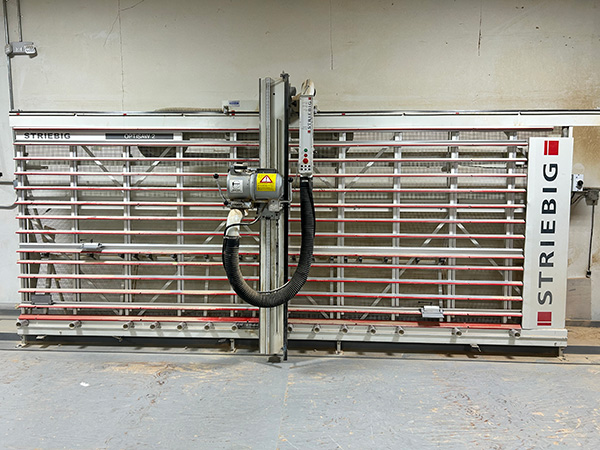

1998 - Striebig Optisaw 2 Panel Saw Standard II $18,000
Description:
Full heavy-duty mid-shelf for working comfortably with smaller parts.
- Heavy-duty panel support rollers with integral roller braking system for effortless material handling and one-man operation.
- Automatic, mechanically shifting aluminum panel support grid with plastic laths
- 7-1/2 HP, 220/440 V, 3-phase motor with Y-delta soft-starter and noise dampening to 77 db
- 300 mm (11-7/8”) carbide saw blade for full 3-1/8” depth of cut
- Built-in dust extraction with separate interior fan, rear hose take-up system, and large stationary dust bag at either end of saw
- Aluminum shroud protects saw blade and operator
- Equipped with measuring flip stops for vertical cutting
- Repeat rip device with panel roller follower and 5’ 11” capacity
- Template bar with six stops for programming common rip cuts
Specifications:
- Cut capacities: 14’ 1”L x 6’ 3”H vert (5’11”H trim); 3-1/8” depth
- Machine dimensions: 18’ L x
- Weight:1700 lbs. (approx. 2000 lbs. shipping)
Requirements:
- Electrical: 3-phase, 220V/30A or 440V/15A service; connection right side of frame
Please Note: The images shown may not be of the exact machine.
