Zeta P2 Cordless
Cordless version of the best-selling, Swiss-crafted biscuit joiner of the Lamello P-System.

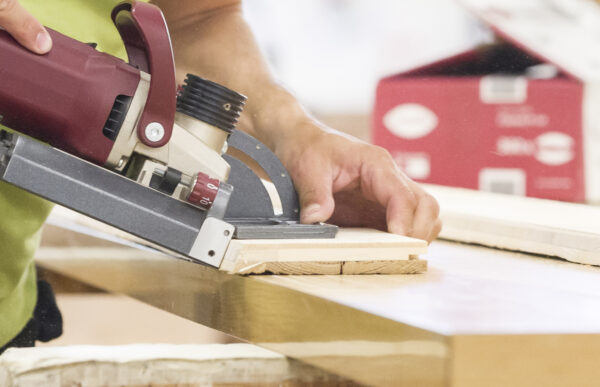

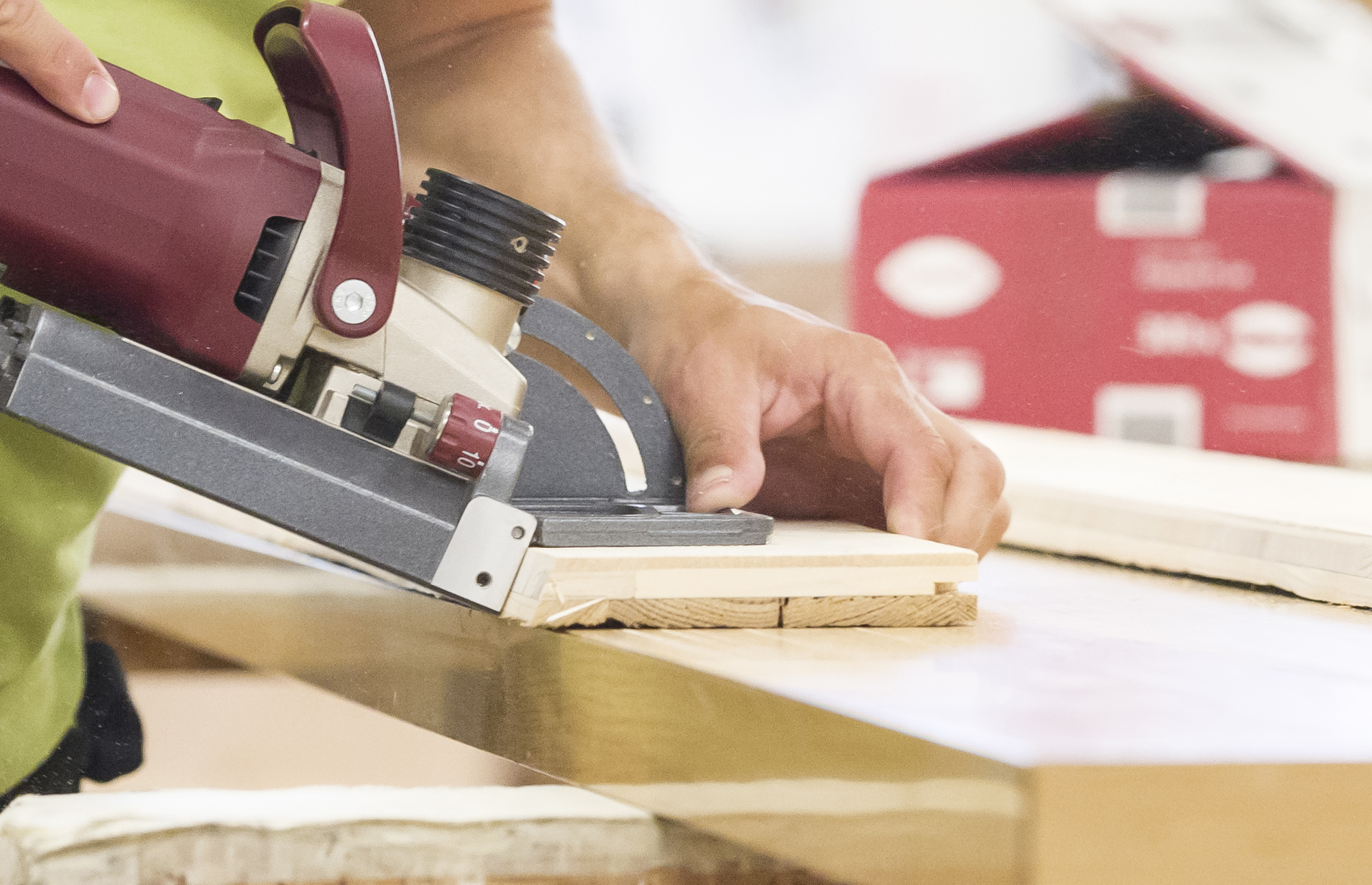

Cordless version offers excellent mobility for job site or large workpiece applications
- Superior quality and precision
- Fast machining of all P-System connector slots
- Unique Integrated vertical mechanical drive
- Can be used as a standard biscuit joiner for Lamello original biscuits

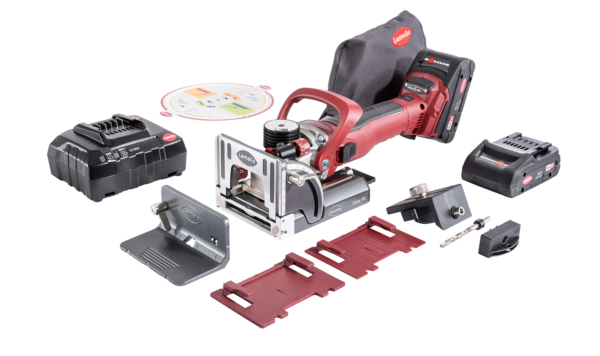

Cordless Kit without battery and charger available upon request.
Secure Online Ordering for U.S. Only - No order is processed until the final checkout.
Product Details
The Zeta P2 Cordless is the profile biscuit joiner for the P-System. It can be used to join components in solid wood, plywood, MDF, particleboard, plastics, solid surface, and more.

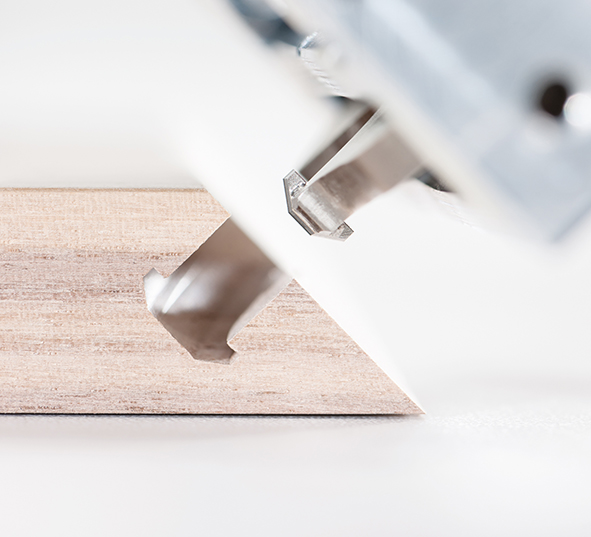

The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 cordless is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.

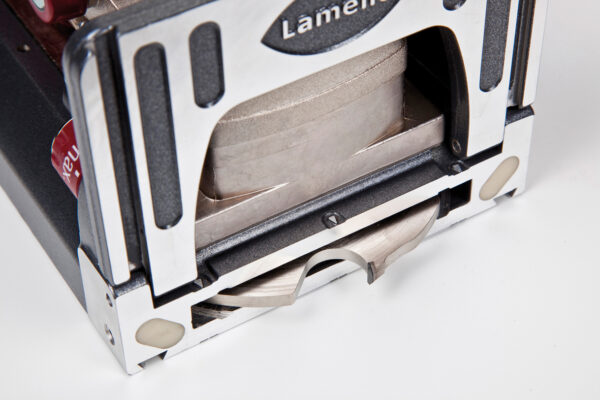

The Zeta P2 cordless can cut P-System grooves for connectors with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.
Function
The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process precision and reliability with a low-wear, fully mechanical construction.
The Zeta P2 cordless can also be employed as a standard biscuit joiner for original biscuits by deactivating the profile groove function and changing to a 4mm blade.
PDF Downloads
Drill a 6 mm Clamex P access hole into the edge
Great combination of CNC machines and Zeta P2
Invisible, self-clamping push-in fasteners
Create clean joints regardless of the material
Subsequent installation of fixed shelves using Divario P-18
Subsequent installation of fixed shelves with Clamex P-14 Flexus

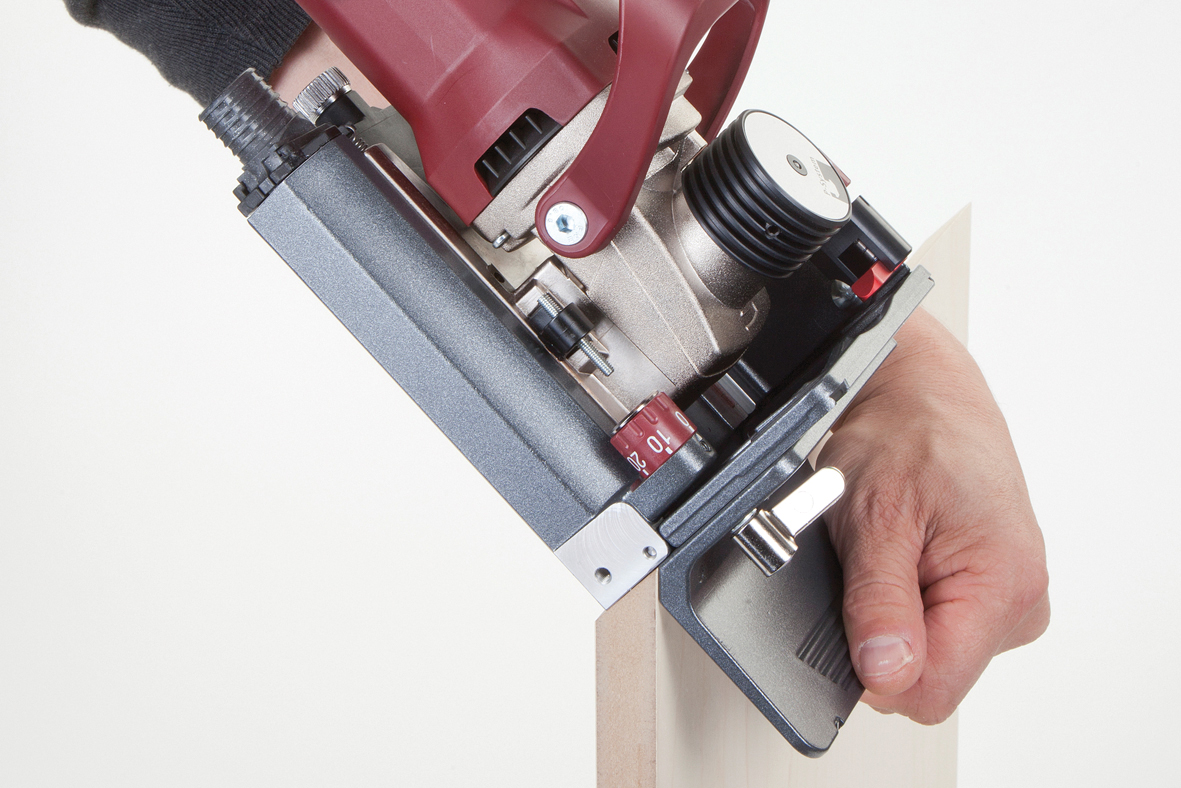

90° mitre as a finish for claddings
Use the P-System configurator to determine connector positions in workpieces
