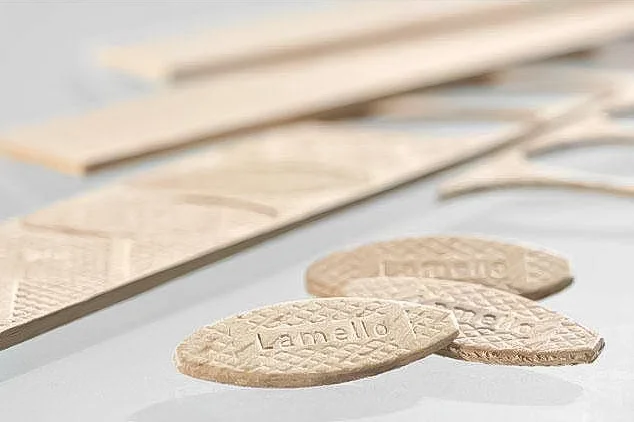

Original Wooden Biscuits

• Swiss production from sustainable Swiss forestry
• 5 different sizes included in system

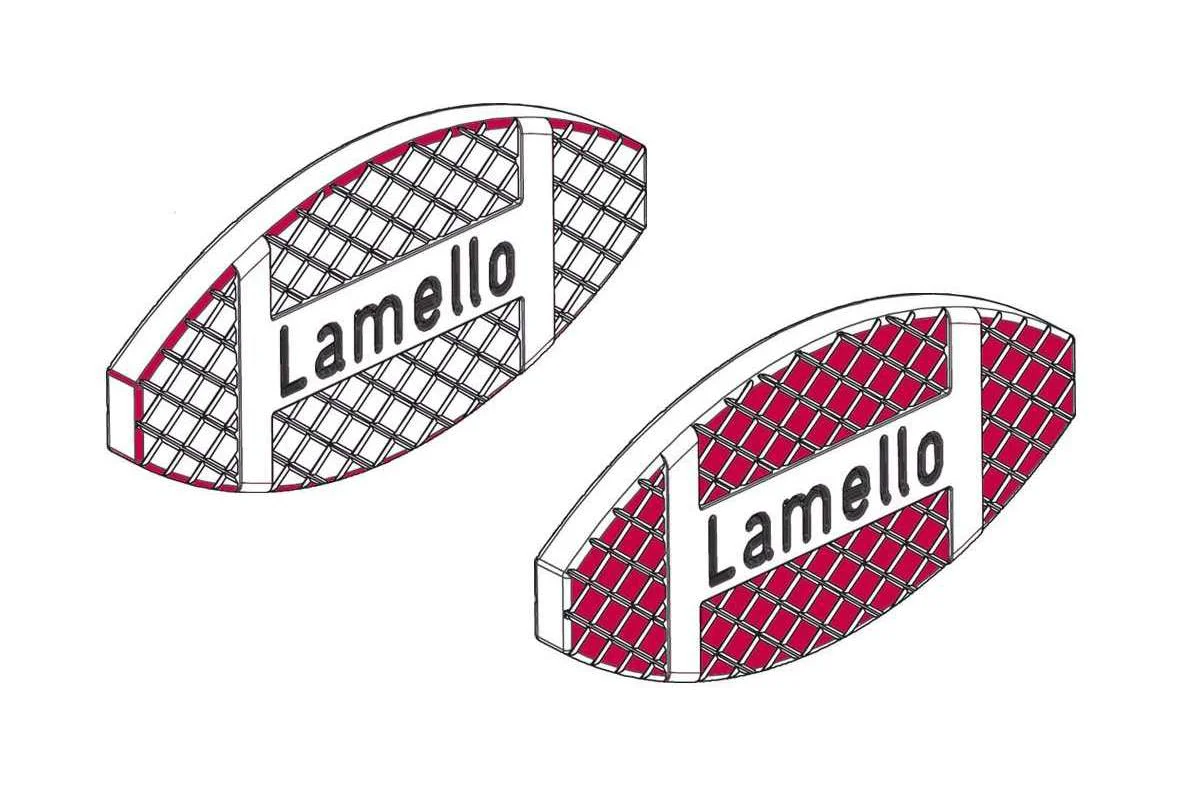

• Recessed, embossed glue surfaces for optimum glue distribution and powerful bond
• Smooth, rounded edges for easy insertion
• Diagonal fiber orientation for high breaking resistance

Benefits of the Lamello joining system

• A single power tool for 10 different connectors offering fixed and detachable connections
• Depth adjuster enables rapid switching between biscuit sizes
• Lateral tolerance allows for faster working without positioning aids and stops
• Avoid errors when adjusting the cutting depth since both work pieces have the same groove depth

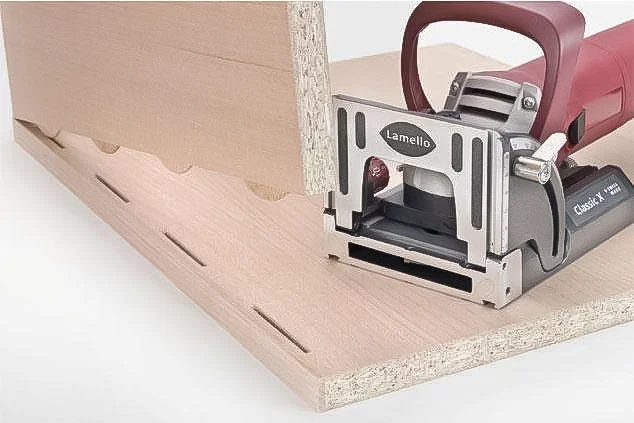

• Proven cutting principle with a disc cutter ensures that the grooves are always parallel and precise, even in the case of knots or rapid working

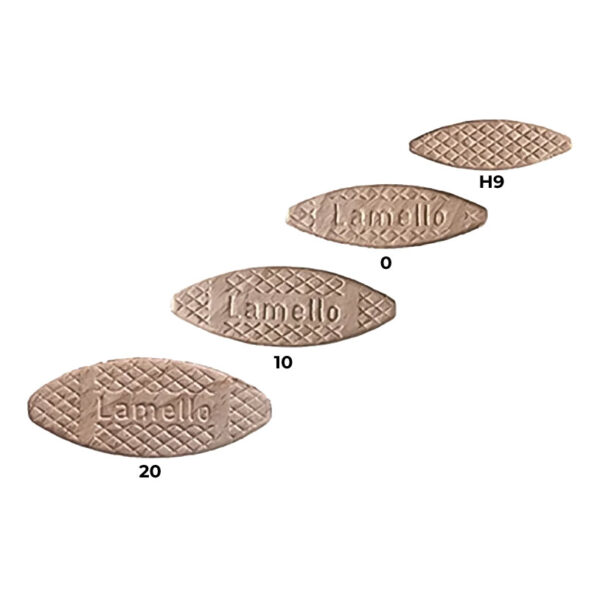

H9 Biscuit Size:

• 38 x 12 x 3 mm

#0 Biscuit Size:

• 47 x 15 x 4 mm

#10 Biscuit Size:

• 53 x 19 x 4 mm

#20 Biscuit Size:

• 56 x 23 x 4 mm

Moisture content:

• Nine percent (9%) with a tolerance plus or minus (+ or-) of one percent (1%)

Thickness tolerance:

• 4 MM plus 0. tolerance can be minus 1/10 MM or 0.004 of one inch

Defective or Damaged Plates:

• Actual number of defects per box has been determined to be .0013%, or 13,000’ths of 1%. Virtually zero product defects.
