Clamex P 14/10 Medius
- Clamex P Medius 14/10 is a dividing panel connector compatible with the Clamex P-14 connector in material with a minimum thickness of 16 mm (5/8″)
- Clamex P is a detachable, high-strength joining system that connects within seconds
- Nealr invisible with its 6 mm tool opening
- Join wood using Zeta P2 power tool or a CNC machine

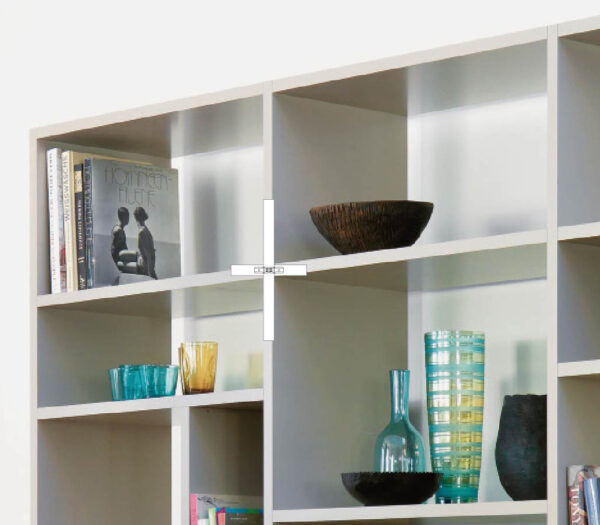

- For dividing panel connection for shelf units where two shelves meet the dividing panel at the same height
$145.00 – $510.00
Secure Online Ordering for U.S. Only - No order is processed until the final checkout.
$145.00
Product Details

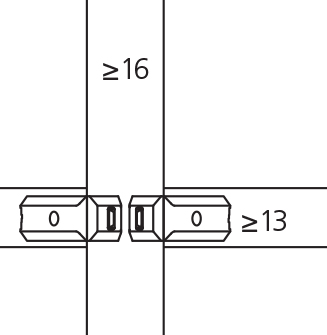

Clamex P Medius complements the Clamex P-14 connectors for use in shelving units where two shelves meet the dividing panel at the same height. Medius consists of two parts with different installation depths. The lever part is installed in the shelf, anchored in a 14 mm deep P-System groove. Thanks to its installation depth of just 10 mm and crescent-shaped cut out, the second part can be fitted back-to-back in a dividing panel measuring just 16 mm (5/8″) in thickness.
The form-locking P-System enables secure installation in the workpiece without the need for tools in just seconds. Clamex P does not require glue or screws, and thus offers numerous benefits in the manufacturing process while also distinguishing itself from standard connecting hardware.
Zeta P2 depth setting 14 and 10.
Compatible Machining
Shipping Charges
As a convenience to our customers in the Continental United States, we charge a Flat rate shipping charge for all orders which will appear in the shopping cart upon check out.
Alaska, Hawaii and Puerto Rico customers will be charged the Flat rate with their order plus an additional small charge for the difference between the Flat rate and the actual UPS Freight Costs.
Faster Delivery
Should you need immediate delivery, the following options are available for an extra charge:
- UPS Next Day Air
- UPS 2nd Day Air
- UPS Three Day Select
Please call us toll-free at the Colonial Saw Hotline to arrange for a special delivery or questions regarding shipping costs: 1-888-777-2729
PDF Downloads
Drill a 6 mm Clamex P access hole into the edge
Great combination of CNC machines and Zeta P2
Invisible, self-clamping push-in fasteners
Create clean joints regardless of the material
Subsequent installation of fixed shelves using Divario P-18
Subsequent installation of fixed shelves with Clamex P-14 Flexus
90° mitre as a finish for claddings
Use the P-System configurator to determine connector positions in workpieces
