Clamex P-10
Detachable Connector for Materials from 12mm Thickness

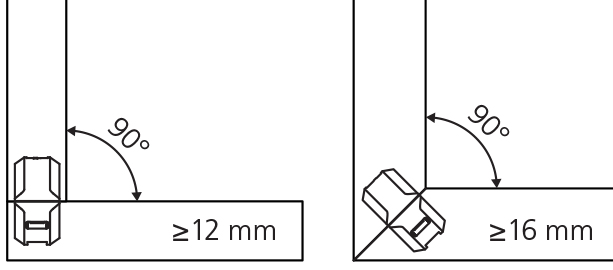

- Clamex P-10 is an addition to the P-System joining system for material as thin as 13 mm (1/2″)
- Mitered connections in materials as thin as 15 mm (9/16″)
- Clamex P is a detachable, high-strength joining system that connects within seconds
- Join wood using the Zeta P2 power tool or a CNC machine
- Clamex P-10 may also be used to clamp outside crown moulding miters with a minimum thickness of 15 mm (9/16″)
$145.00 – $510.00
Secure Online Ordering for U.S. Only - No order is processed until the final checkout.
$145.00
Product Details
Clamex P-10 is a detachable, two-part connector with an internal cam lock which is engaged with a lever. Compared to Clamex P-14, Clamex P-10 has a shallower installation depth of just 10 mm and is therefore may be used in thinner material. The design of the connector is enhanced by two torsion tabs, which offer strong dimensional stability.
The form-locking P-System enables strong connections in the workpiece without the need for tools in just seconds. Clamex P does not require glue or screws, and offers numerous benefits in the manufacturing process while also distinguishing itself from standard connecting hardware.
Zeta P2 depth setting 10.
Compatible Machining
Shipping Charges
As a convenience to our customers in the Continental United States, we charge a Flat rate shipping charge for all orders which will appear in the shopping cart upon check out.
Alaska, Hawaii and Puerto Rico customers will be charged the Flat rate with their order plus an additional small charge for the difference between the Flat rate and the actual UPS Freight Costs.
Faster Delivery
Should you need immediate delivery, the following options are available for an extra charge:
- UPS Next Day Air
- UPS 2nd Day Air
- UPS Three Day Select
Please call us toll-free at the Colonial Saw Hotline to arrange for a special delivery or questions regarding shipping costs: 1-888-777-2729
PDF Downloads
Drill a 6 mm Clamex P access hole into the edge
Great combination of CNC machines and Zeta P2
Invisible, self-clamping push-in fasteners
Create clean joints regardless of the material
Subsequent installation of fixed shelves using Divario P-18
Subsequent installation of fixed shelves with Clamex P-14 Flexus

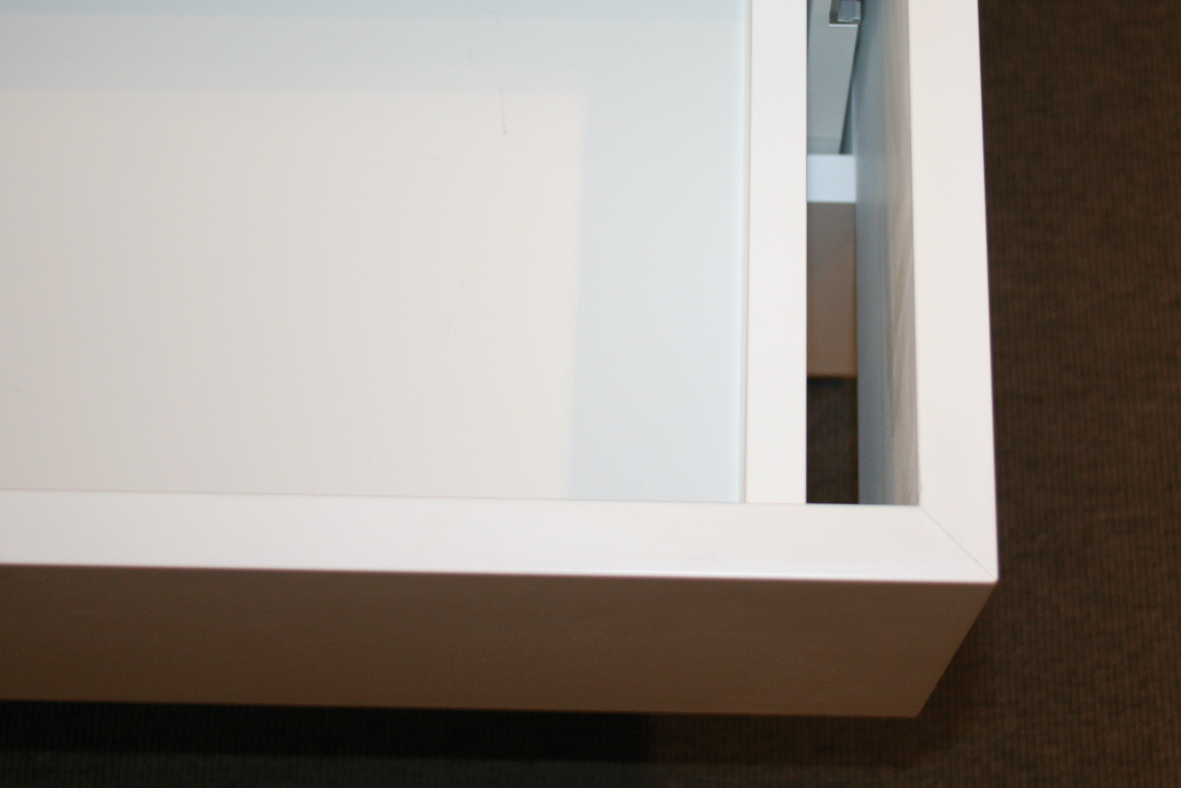

90° mitre as a finish for claddings
Use the P-System configurator to determine connector positions in workpieces
